Types of Flutes in Corrugated Boxes: Complete Guide for Smart packaging
Most businesses think about box size, price, or strength when choosing corrugated packaging. A key factor in packaging performance is often overlooked: the flute type in corrugated board.
Flute selection impacts many areas. It affects the durability, cushioning, print quality, and protection of a corrugated box. This is important for e-commerce shipping, retail packaging, and industrial transportation.
Whether you're an online seller, packaging supplier, retailer, or manufacturer, understanding flute types is key. It helps you choose the best packaging for your products.
What Are Flutes in Corrugated Boxes?
Flutes are the wave-like (arched) layers between the linerboards in corrugated cardboard packaging Boxes. These layers create air pockets that provide strength, cushioning, and insulation.
The size and shape of these flutes directly affect:
- Compression strength
- Cushioning ability
- Weight of the box
- Printing surface quality
The size and density of the flute determine how strong, thick, and printable a corrugated box will be.

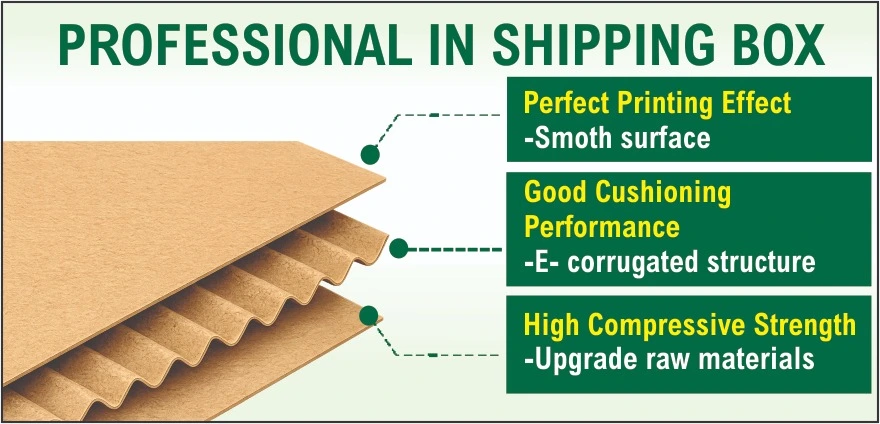

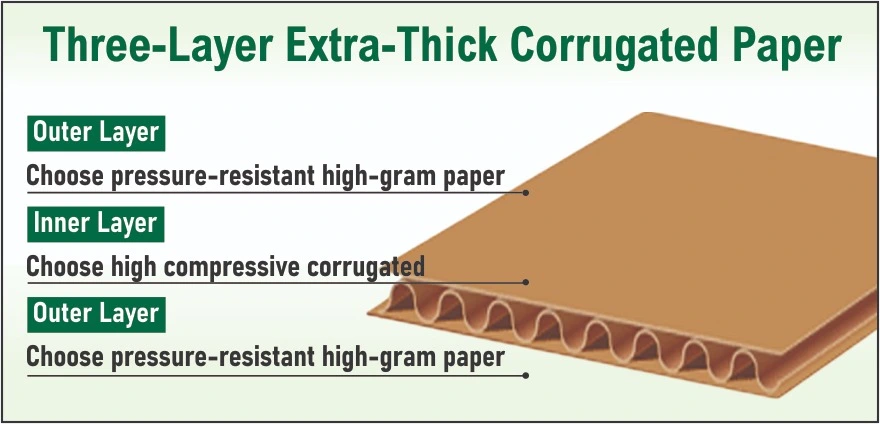

Structure of Corrugated Board
A corrugated box is generally made of three important layers:
1. Outer Liner
The outer liner forms the exterior surface of the corrugated box. It provides strength, durability, and a printable surface for branding and product information.
2. Flute Layer
The middle flute layer is the wavy kraft paper sheet placed between the linerboards. This layer gives the box cushioning and stacking strength.
3. Inner Liner
The inner liner creates a smooth internal surface and adds structural support to the corrugated packaging box.
Why Flute Size Matters in Packaging
Different flute profiles offer different packaging advantages. The flute size affects:
- Box thickness
- Load-bearing strength
- Cushioning performance
- Print quality
- Stacking ability
- Die-cutting flexibility
- Shipping efficiency
Two major factors define flute performance:
1. Flute Height
Flute height refers to the vertical thickness of the flute wave. Larger flute heights provide better cushioning and protection.
2. Number of Flutes Per Foot
Higher flute counts create smoother surfaces for printing and improve rigidity. Lower flute counts provide better cushioning and shock absorption.

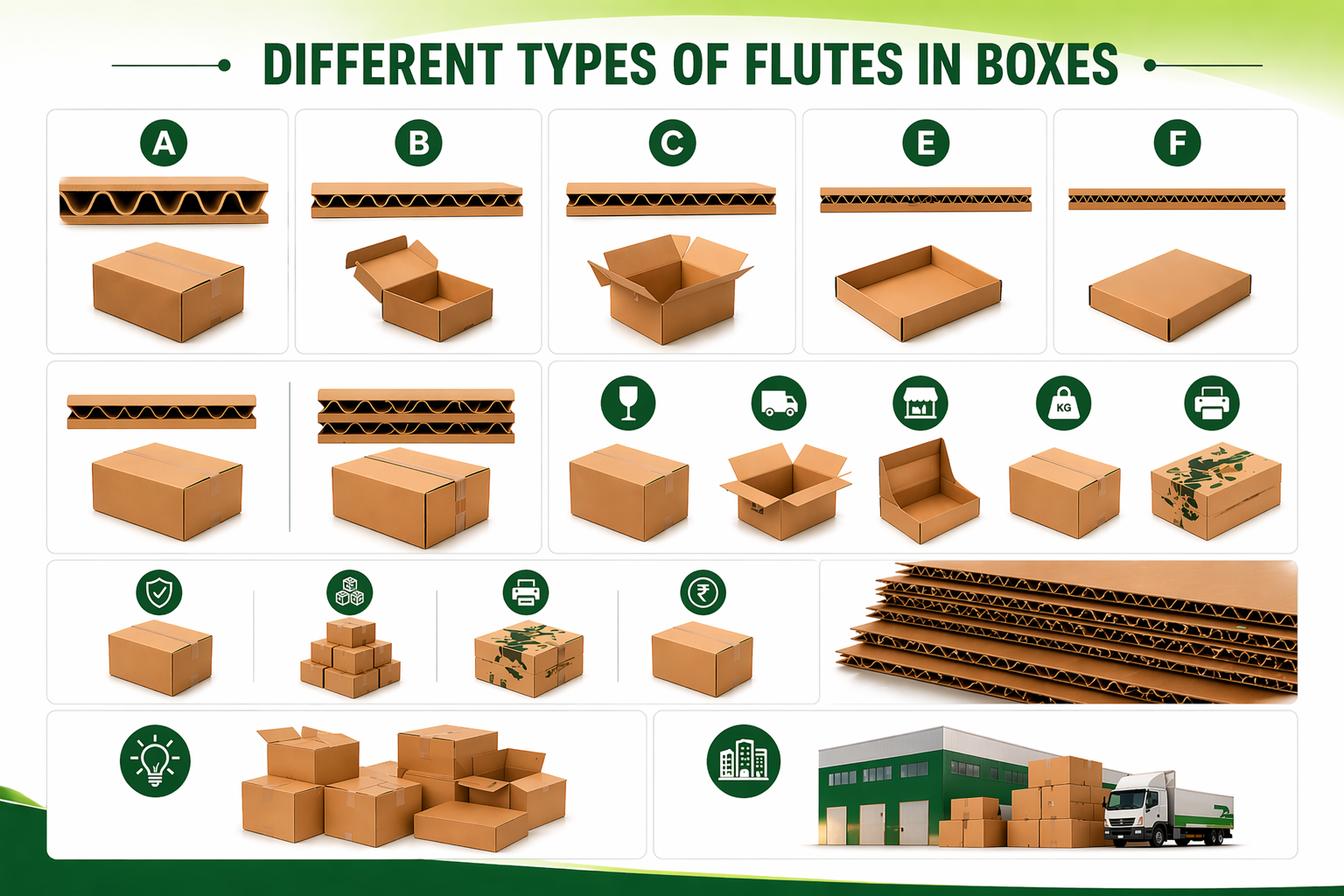

Types of Flutes in Corrugated Boxes
There are several standard flute types used in packaging. Each has its own characteristics and ideal use cases.

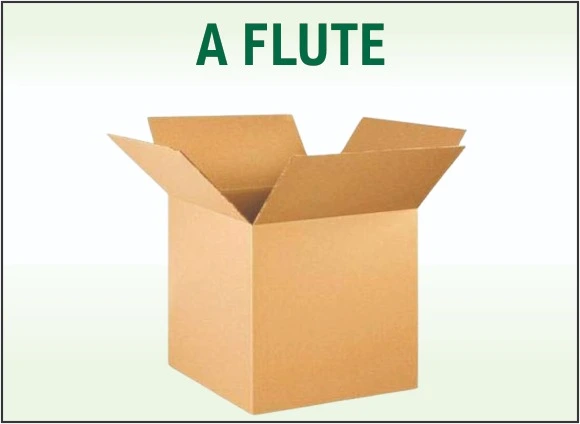

1. A Flute
- Thickness: Approx. 4.5 – 5 mm
- Flutes Per Foot: Around 33
- Best For: Heavy-duty and fragile packaging
A flute is one of the thickest corrugated flute profiles available. It provides excellent cushioning, stacking strength, and shock absorption.
Due to its larger air pockets, A flute is ideal for protecting delicate and heavy products during transportation.
Advantages of A Flute
- Excellent cushioning protection
- Strong stacking performance
- High compression resistance
- Better insulation properties
Best Uses of A Flute
- Glassware packaging
- Furniture packaging
- Industrial machinery
- Fragile electronics
- Heavy shipping cartons
Limitations
A flute offers lower print quality due to its thicker, rougher surface structure.

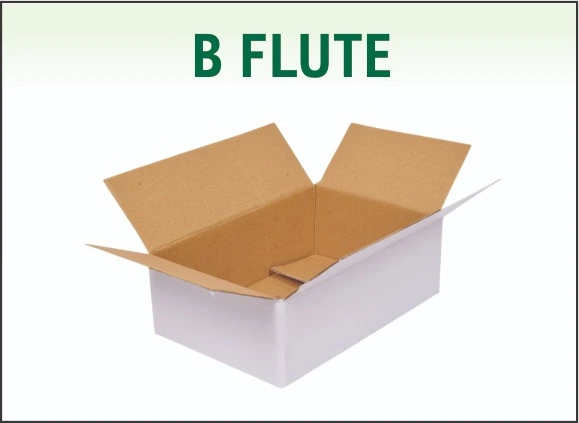

2. B Flute
- Thickness: Approx. 2.5 – 3 mm
- Flutes Per Foot: Around 47
- Best For: Retail packaging and die-cut boxes
B flute is thinner than A flute and provides excellent puncture resistance with a flatter surface.
It is one of the most commonly used flute types in e-commerce packaging and custom mailer boxes.
Advantages of B Flute
- Better print surface
- Good puncture resistance
- Strong die-cutting performance
- Lightweight and versatile
Best Uses of B Flute
- Subscription boxes
- Cosmetic packaging
- Mailer boxes
- Retail packaging
- Small e-commerce shipments
Limitations
B flute provides less cushioning compared to A flute and is not ideal for very heavy products.

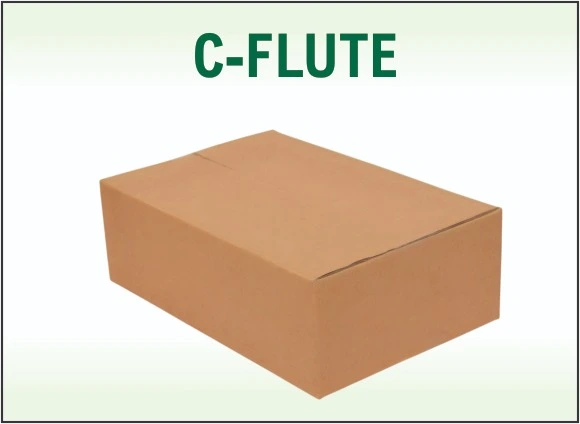

3. C Flute
- Thickness: Approx. 3.5 – 4 mm
- Flutes Per Foot: Around 39
- Best For: Shipping boxes and general packaging
C flute is the most widely used flute type in the corrugated packaging industry.
It offers the perfect balance between cushioning, durability, stacking strength, and printability.
Advantages of C Flute
- Strong stacking strength
- Good cushioning
- Versatile performance
- Suitable for shipping applications
Best Uses of C Flute
- Shipping boxes
- Corrugated carton boxes
- E-commerce packaging
- Food packaging
- Industrial packaging
Why C Flute Is Popular
C flute is commonly used in 3 ply corrugated boxes because it balances protection and cost efficiency.
4. E Flute
- Thickness: Approx. 1 – 1.5 mm
- Flutes Per Foot: Around 90
- Best For: Premium packaging and printing
E flute is thinner and smoother than traditional flute profiles. It provides excellent printing quality and a premium packaging appearance.
Advantages of E Flute
- Smooth print surface
- High-quality branding support
- Lightweight structure
- Better folding performance
Best Uses of E Flute
- Cosmetic boxes
- Mobile accessory packaging
- Luxury retail packaging
- Printed packaging boxes
- Promotional kits
Limitations
E flute provides lower cushioning and is not suitable for heavy shipping applications.
5. F Flute
- Thickness: Approx. 0.8 mm
- Flutes Per Foot: Around 125
- Best For: Luxury and compact packaging
F flute is one of the thinnest corrugated flute types available.
Its ultra-smooth surface makes it ideal for high-end retail packaging and premium branding.
Advantages of F Flute
- Superior print quality
- Elegant appearance
- Space-efficient design
- Eco-friendly packaging option
Best Uses of F Flute
- Jewelry packaging
- Luxury product boxes
- Shoe boxes
- Perfume packaging
- High-end retail packaging
Limitations
F flute offers very limited cushioning and is generally unsuitable for shipping fragile products alone.
Comparison Table of Corrugated Flutes
| Flute Type | Thickness | Flutes/Foot | Strength | Print Quality | Best For |
|---|---|---|---|---|---|
| A Flute | 4.5 – 5 mm | 33 | Very High | Medium | Fragile & heavy items |
| B Flute | 2.5 – 3 mm | 47 | Medium | Good | Retail & mailer boxes |
| C Flute | 3.5 – 4 mm | 39 | High | Medium | Shipping boxes |
| E Flute | 1 – 1.5 mm | 90 | Medium | Excellent | Printed retail packaging |
| F Flute | 0.8 mm | 125 | Low | Premium | Luxury packaging |

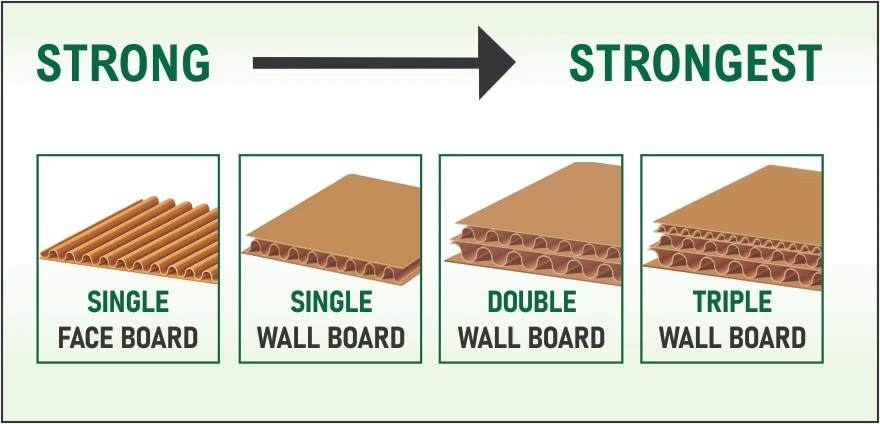

Single Wall vs Double Wall vs Triple Wall Corrugated Boxes
Single Wall Corrugated Box (3 Ply)
Single-wall boxes contain one flute layer between two linerboards.
Features
- Lightweight
- Cost-effective
- Suitable for small to medium products
Common Uses
- E-commerce packaging
- General shipping
- Retail packaging
Double Wall Corrugated Box (5 Ply)
Double-wall boxes contain two flute layers combined.
Common flute combinations include:
- BC flute
- EB flute
Features
- Higher durability
- Better cushioning
- Increased stacking strength
Common Uses
- Heavy products
- Fragile items
- Long-distance transportation
Triple Wall Corrugated Box (7 Ply)
Triple wall corrugated boxes contain three flute layers and provide maximum strength.
Features
- Industrial-grade protection
- Superior load-bearing capacity
- Excellent durability
Common Uses
- Export packaging
- Industrial machinery
- Bulk transportation
- Heavy equipment shipping
How to Choose the Right Flute Type
Choosing the correct flute depends on your packaging goals and product requirements.
Choose A Flute If:
- You need maximum cushioning
- Products are fragile or heavy
- Protection is your priority
Choose B Flute If:
- You want better print quality
- You need retail-ready packaging
- You use die-cut boxes
Choose C Flute If:
- You need balanced shipping protection
- You sell products online
- You need standard corrugated shipping boxes
Choose E or F Flute If:
- Branding and appearance matter most
- You need premium retail packaging
- Products are lightweight
Why Flute Selection Matters in E-commerce Packaging?
In e-commerce businesses, packaging directly impacts customer satisfaction and product safety.
The right flute type helps:
- Reduce shipping damage
- Improve stacking efficiency
- Lower return rates
- Enhance product presentation
- Improve brand experience
- Reduce packaging costs
For most online sellers, B flute and C flute are the preferred options because they offer a balance of strength, affordability, and printing quality.
Frequently Asked Questions
Q. What is a flute in a corrugated box?
A. A flute is the wavy paper layer placed between linerboards in corrugated cardboard packaging. It provides strength, cushioning, and structural support.
Q. Which flute is strongest?
A. A flute and double-wall flute combination provides the highest cushioning and strength.
Q. Which flute is best for printing?
A. E flute and F flute offer the smoothest printing surfaces for premium branding and packaging.
Q. Which flute is best for e-commerce packaging?
A. C flute and B flute are commonly used for e-commerce shipping boxes because they balance protection and cost efficiency.
Q. Which flute is used in 3 ply corrugated boxes?
Single-wall 3-ply corrugated boxes commonly use B flute or C flute.
Q. Which flute is best for fragile products?
A. A flute and double-wall corrugated boxes are ideal for fragile and delicate items.
Conclusion
Understanding the different types of flutes in corrugated boxes is essential for choosing the right packaging solution.
Each flute type offers unique benefits, from cushioning and stacking strength to printing quality and branding appeal.
Whether you need durable shipping boxes, lightweight retail packaging, or luxury custom packaging, selecting the correct flute type helps improve product safety, customer experience, and overall packaging performance.
